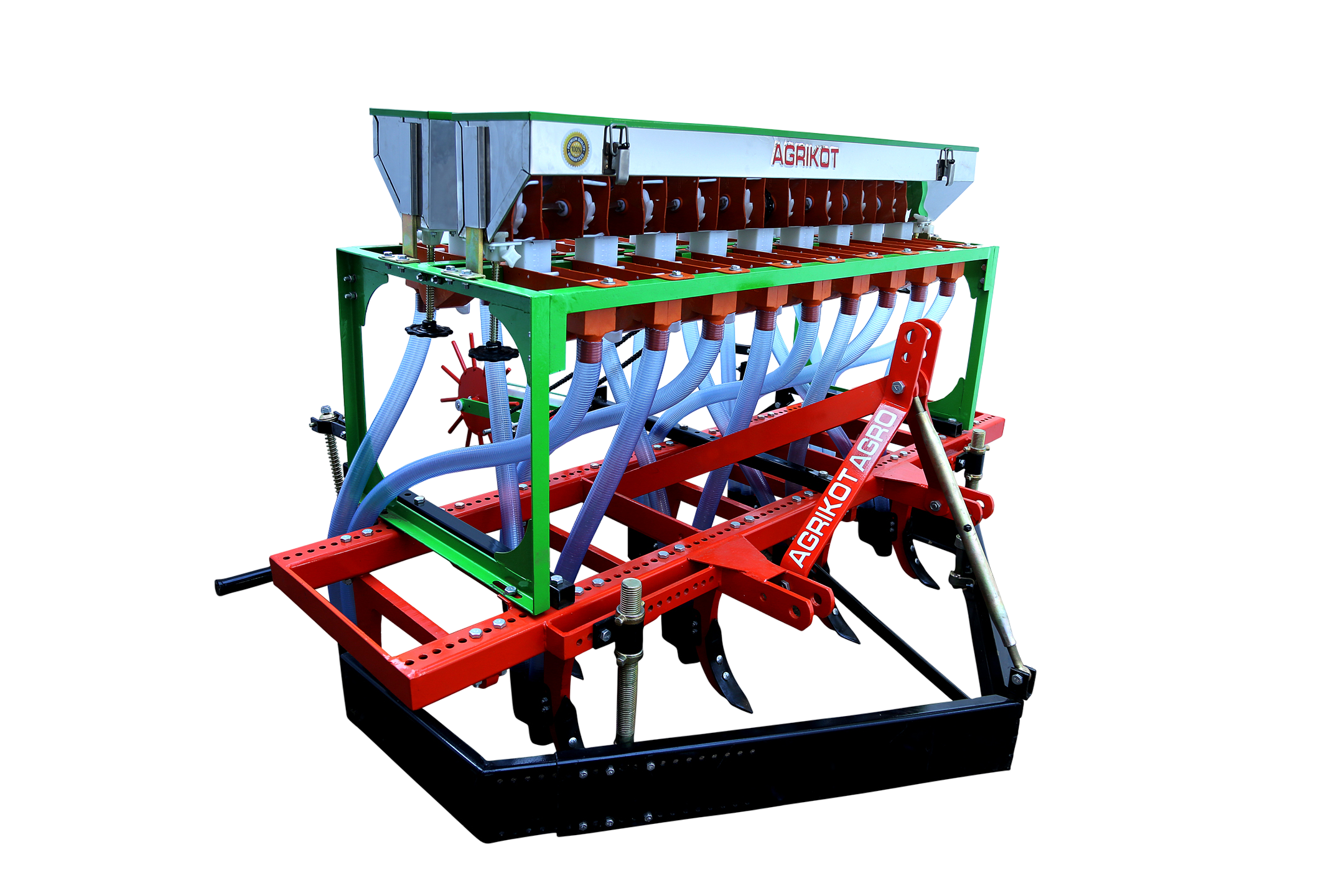

9x18 (1+1) SS Mode Seed Cum Fertilizer Drill

It is a long established fact that a reader will be distracted by the readable content of a page when looking at its layout. The point of using Lorem Ipsum is that it has a more-or-less normal distribution of letters, as opposed to using 'Content here, content here', making it look like readable English. Many desktop publishing packages and web page editors now use Lorem Ipsum as their default model text, and a search for 'lorem ipsum' will uncover many web sites still in their infancy. Various versions have evolved over the years, sometimes by accident, sometimes on purpose

  • It is used for Planting Maize & other seeds on ridges.
  • The zero till consists of a seed box, fertilizer box, seed and Fertilizer Drill.
  • Can maintain plant to plant spacing.
  • It is available in 9, 11, and 13 Row.
  • Easy and quick attachment to tractor.
  • Separate Seed & Fertilizer Box.
  • Adjustable flow of Seed & Fertilizer through knob.
  • Adjustable marker for Crop to Crop distance.
  • Designed with Heavy Structure.
Make an Inquriy

Technical Specification

Model Model 1 Model 2 Model 3 Model 4
Frame (MM) 60 x 60 x 5 Tubular Frame 60 x 60 x 5 Tubular Frame 60 x 60 x 5 Tubular Frame 60 x 60 x 5 Tubular Frame
Seed Box (MM) Stainless Steel / MS Galvanize Stainless Steel / MS Galvanize Stainless Steel / MS Galvanize Stainless Steel / MS Galvanize
Seed & Fertilizer Box Capacity (Kg) 40 40 40 40
Seed Drilling Depth (MM) 20 - 100 (Adjustable) 20 - 100 (Adjustable) 20 - 100 (Adjustable) 20 - 100 (Adjustable)
Seed to Seed Spacing (MM) 25 - 250 (Adjustable) 25 - 250 (Adjustable) 25 - 250 (Adjustable) 25 - 250 (Adjustable)
Row to Row Spacing (MM) 100 - 250 (Adjustable) 100 - 250 (Adjustable) 100 - 250 (Adjustable) 100 - 250 (Adjustable)
Working Width (MM) 2150 2150 2150 2150
Weight (Kg) 300 320 340 360
Tractor Power (HP) 35+ 35+ 35+ 35+
